Bumpers

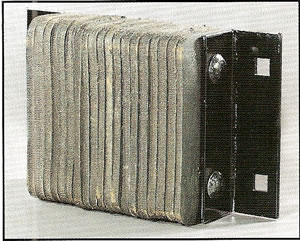

Laminated Rubber Dock Bumpers

Features

Tough plies of truck tire material virtually eliminates chipping or abrasion, unlike molded rubber, extruded rubber, or wood plan bumpers.

Attractive deep black color enhances a neat, professional architectural look.

Manufactured under pressure exceeding 1,500 lbs. to absorb over 80% of impact force.

Anchor bolts are protected by at least 3″ of rubber to prevent damage.

Uses / Applications

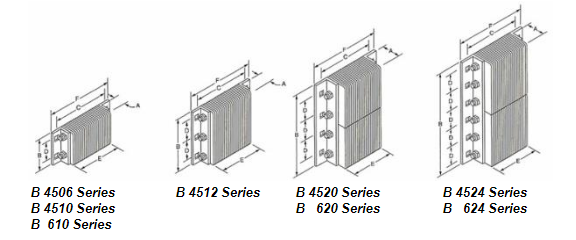

Available in two models: bumpers with angles for most applications — equipped with 1/4″ steel angles on both ends;

and bumpers with flat plate for use with dock levelers –optional 1/4″ flat

steel plate for one or both ends.

Have unlimited applications in factories, warehouses and docks.

Vehicle impact protection for loading docks.

Projecting above low docks.

Rub rails at the sides of truck wells.

Wall bumpers to protect against fork lift trucks.

Special construction features to accommodate unusual anchoring conditions.

Provides maximum protection against vehicle damage to docks, buildings and cargo.
Absorbs over 80% of truck impact and shock to protect dock and building
Leading bumper sold in the industry today
Standard sizes shipped within 24 hours.
Eliminates costly repairs from severe shock to docks
Constructed to last and provide years of protection
Anchored through thick steel angles to provide stability and shape retention
Platforms on any truck dock under any weather condition or prolonged exposure
Maintenance free. 5 year warranty.

Furnish and install rubber dock bumpers. Resilient rubber material of bumpers shall be rubberized-fabric truck tires cut to uniform size pads and punched to receive 3/4" supporting rods.
All bumpers must be 4-1/2" or 6" thick (projection from dock), and closed with two 1/4" structural angles under approximately 1,500 lbs. of pressure.
The anchor leg of angle extends a minimum of 3" beyond the rubber surface at either end and contains two or three 13/16" anchor bolt holes as required
Black finish
Galvanized exposed metal or all metal available upon request, surcharges apply
